Mowing head

PolyCut 20-3

Please make certain that the correct, approved guard for the cutting attachment is installed. For the correct guard and proper installation, please consult the Instruction Manual.

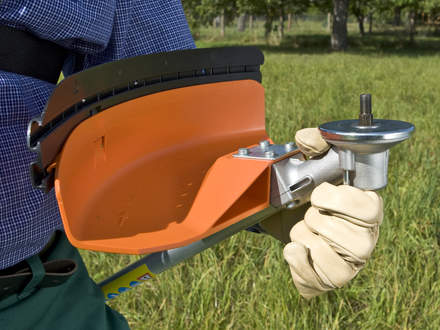

  • Step 1 of 5: Preparing your brushcutter

    Please make certain that the correct, approved guard for the cutting attachment is installed. Hold the brushcutter with the mount for the cutting attachment facing upward.

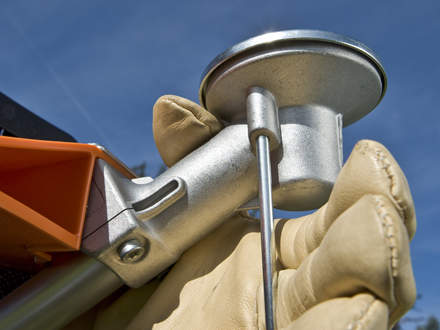

  • Step 2 of 5: Locking the shaft

    Push the locking pin or the offset screwdriver into the hole in the gearbox. Now turn the shaft until the locking pin engages and locks the shaft in position.

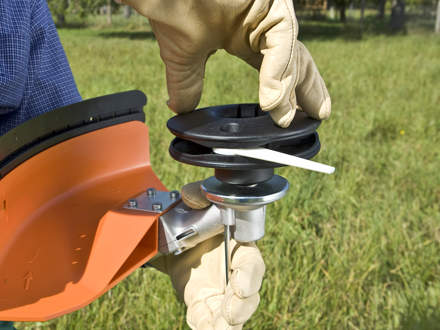

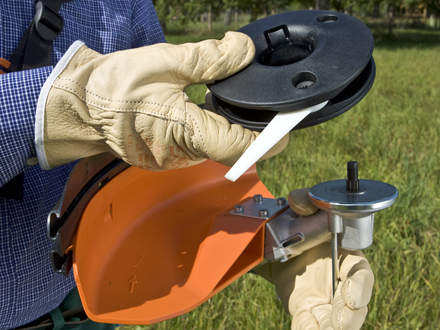

  • Step 3 of 5: Fitting the mowing head

    Turn the mowing head anti-clockwise until it reaches the stop on the shaft.

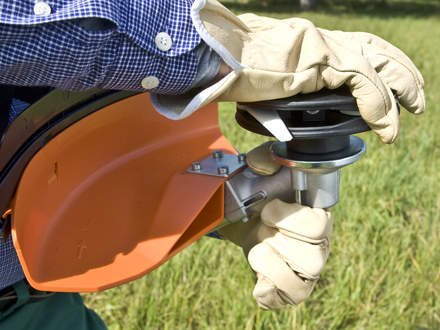

  • Step 4 of 5: Tightening up the mowing head

    With the shaft immobilized, tighten up the mowing head.

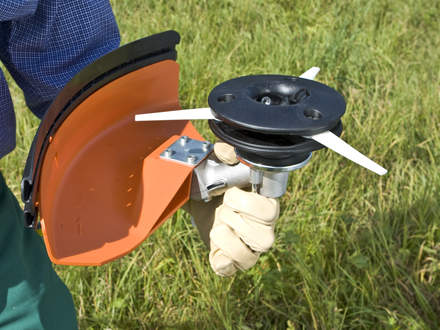

  • Step 5 of 5: Removing the tool

    Then remove the shaft-locking tool again.
